Quick Details

  • Condition: New
  • Type: Resistance Furnace, Car bottom furnace
  • Usage: Heat Treatment Furnace
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Samlab
  • Model Number: ST2-75-12TP
  • Voltage: 380V
  • Power(W): 75-2600KW
  • Dimension(L*W*H): Customized
  • Weight: 1T-35T
  • Certification: CE Certificate
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Heat treatment Industrial Electric Sintering Furnace Price
  • Max tempurature: 1200℃
  • Working temperature: 1100℃
  • Heating Element: Electric Resistance Wire
  • Thermocouple: K type
  • Chamber material: Alumina ceramic fiber and insulating brick
  • Temperature control: 30 segments programmable and PID auto control
  • Heating rate: 0-30 degree/min.
  • Temperature accuracy: ±1°C

Packaging & Delivery

Packaging Details Plastic paper inside, Polyfoam filled, Wooden box outside
Delivery Time Within 15 days after the payment

Bogie Heat Treatment Furnace Trolley Type For Cooper Alloy High Carbon Tools Steel Parts Treatment



Product Description

Trolley heat treatment furnace Mainly Application:

Quenching/ Hardneing/ Tempering/ Annealing/ Carburization/ Stress relief..And so on.



Trolley heat treatment Brief:
Our trolley furnace is a periodic type heat treatment furnace, mainly used for large and
medium-sized high chrome, high manganese steel casting, gray iron castings, nodular cast iron, roller, steel ball, hammerhead of the crusher, wear-resisting liners, pressure
vessel, slewing bearing, large axial, mechanical parts and mould material for annualizing and other heat treatment. Electric or gas can be used as heating source.


Trolley heat treatment furnace Structure:
The trolley furnace consist of furnace shell, furnace linings ,furnace door, door hoisting
appliance, heating element, bogie and driving mechanism, sealing mechanism, intelligent electrical control system, etc.


Trolley heat treatment furnace Feature:
1. Large loading capacity, strong heat treatment ability for large workpiece,high
efficiency and low operation cost.

2. The furnace linings is made of the complete fiber structure, compared to the brick
furnace chamber, effectively improve the performance of heat preservation.

3. For the small and medium size furnace, no need to installation basic foundation,
integration of rail, can be used on a level ground.

4.Large -scale electric furnace adopts multiple district heating, in order to improve the
temperature uniformity, the heating elements are installed at the furnace door, back wall and bogie, high-power electric furnace, equipped with multi automatic temperature control cabinet, respectively for district heating automatic temperature control.

5.The operation of the furnace door and bogie is full automatic control. Each electric box is equipped with several pieces of instrument and automatic observer which can provide the controlling of the furnace temperature, automatic recording, over temperature automatic power-off protection and so on.



Trolley heat treatment furnace Pictures:





Trolley heat treatment furnace Working Temp. range: 650.C/ 950.C/1100.C;

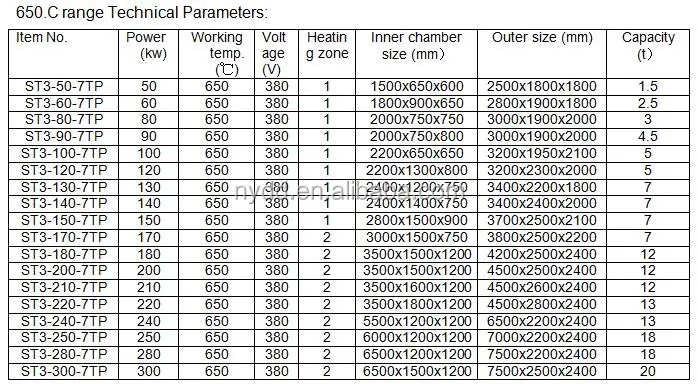

650.C range Technical Parameters:



950.C range Technical Parameters:





1100.C range Technical Parameters:


How to make an order
Buyer Feedback
Our Services



FAQ



Company Information

Nanyang Dadi Electric Equipment Co., Ltd is a professional Heat treatment furnace manufacturer with more than 10 years experiences.

Mainly Electric furnaces including :

Muffle furnace

Atmosphere furnace

Tube furnace

Dental sintering furnace

Vacuum furnace

Crucible furnace

Bottom loading furnace

Car bottom furnace

Etc.
